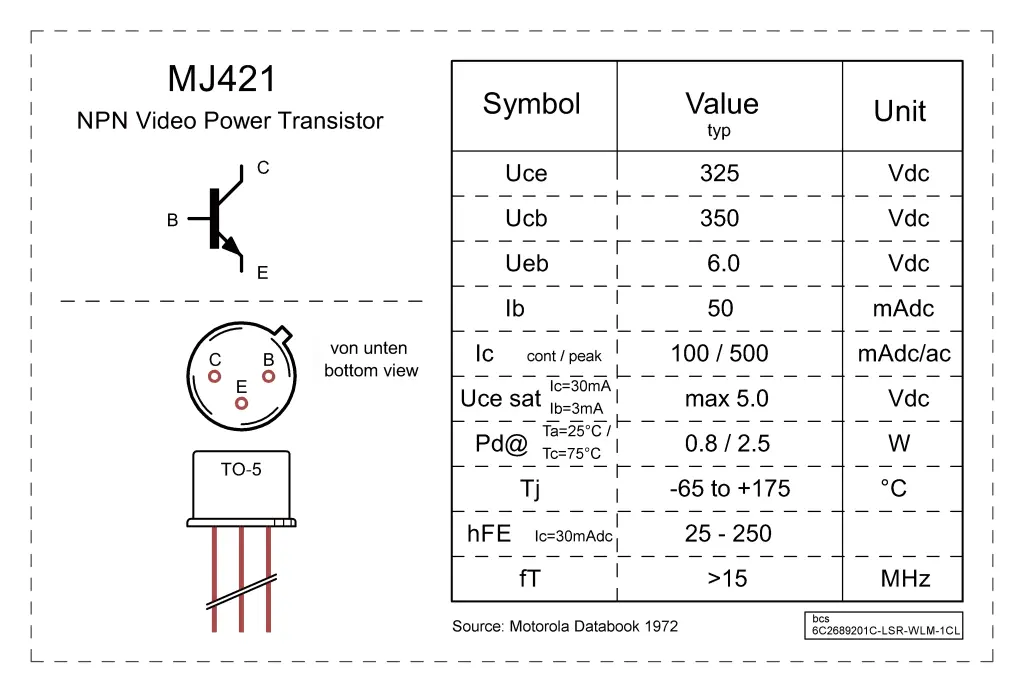

MJ421

SI NPN transistor

U_CE/U_CB

325V/350V

I_C^DC/AC

100mA/0.5A

h_FE

25-250

f_T

>15MHz

P_tot

2.5W

T_J

175°C

the MJ421 is a silicon NPN transistor preferred for use in TV tube video output applications


-

Source

Motorola Databook 19... [more]

Advanced Information for MJ421

OEM:

Motorola Sem... [more]

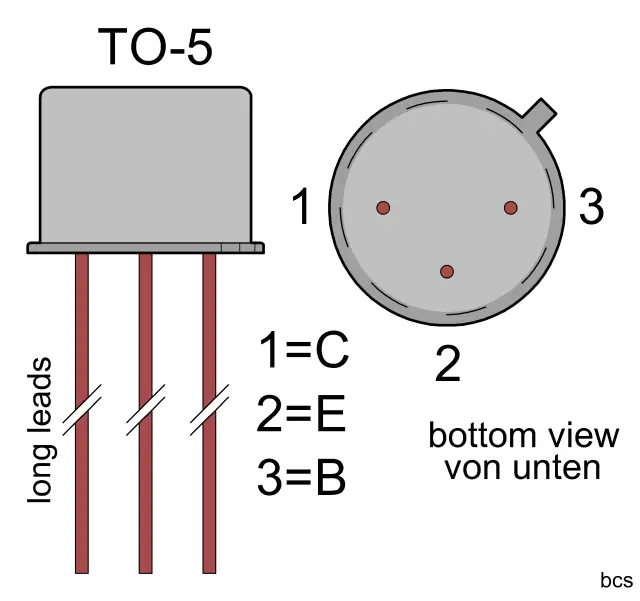

Package:

MJ421 Info:

MJ421 datasheet (pdf):

-

-

-

complementary type:

-

MJ421

SI NPN transistor

U_CE/U_CB

325V/350V

I_C^DC/AC

100mA/0.5A

h_FE

25-250

f_T

>15MHz

P_tot

2.5W

T_J

175°C

the MJ421 is a silicon NPN transistor preferred for use in TV tube video output applications


-

Source

Motorola Databook 19... [more]

Advanced Information for MJ421

OEM:

Motorola Sem... [more]

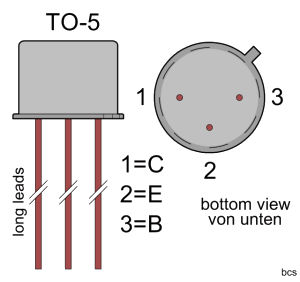

Package:

MJ421 Info:

MJ421 datasheet (pdf):

-

-

-

complementary type:

-
