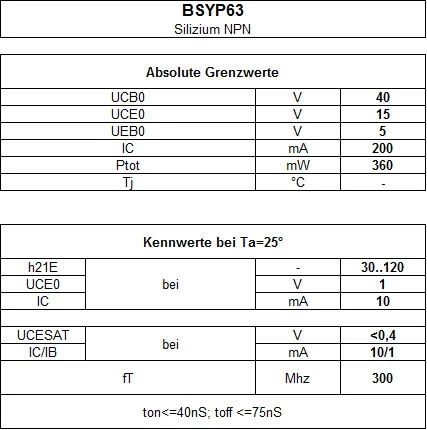

BSYP63
SI NPN transistor
UCE/UCB
15V/40V
IC
0.2A
hFE
30-120
fT
300MHz
TON/TOFF
40-75nS
Ptot
0.36W
the BSYP63 is a silicon NPN transistor, Uce = 15V, Ic = 200mA, applications: switch
Advanced Information for BSYP63
Package:
BSYP63 Info:
BSYP63 datasheet (pdf):
-
-
complementary type:
-
similar type list:
-
similar type search:
