AF109

GE PNP transistor

U_CE/U_CB

-18V/-25V

I_C

-12mA

h_FE

>20

f_T

200MHz

P_tot

33mW

T_J

75°C

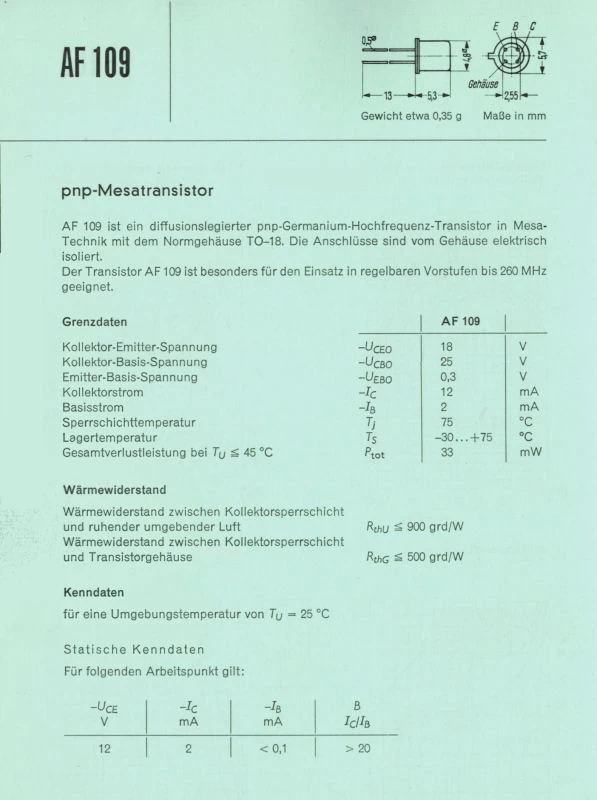

the AF109 is a PNP germanium transistor, preferred for input - mixer and oscillator stages up to 260MHz


-
