ADZ12
GE PNP transistor
UCE/UCB
-60V/-80V
IC
-15A
hFE
40-120
fT
100kHz
Ptot
45W
TJ
90°C
the ADZ12 is a germanium PNP power transistor preferred for use in general purpose amplifier and switching applications, collector is connected to case
-
Source
Va Valvo Handbuch 19... [more]
Advanced Information for ADZ12
OEM:
Valvo GmbH
Package:
TO-36
ADZ12 Info:
available

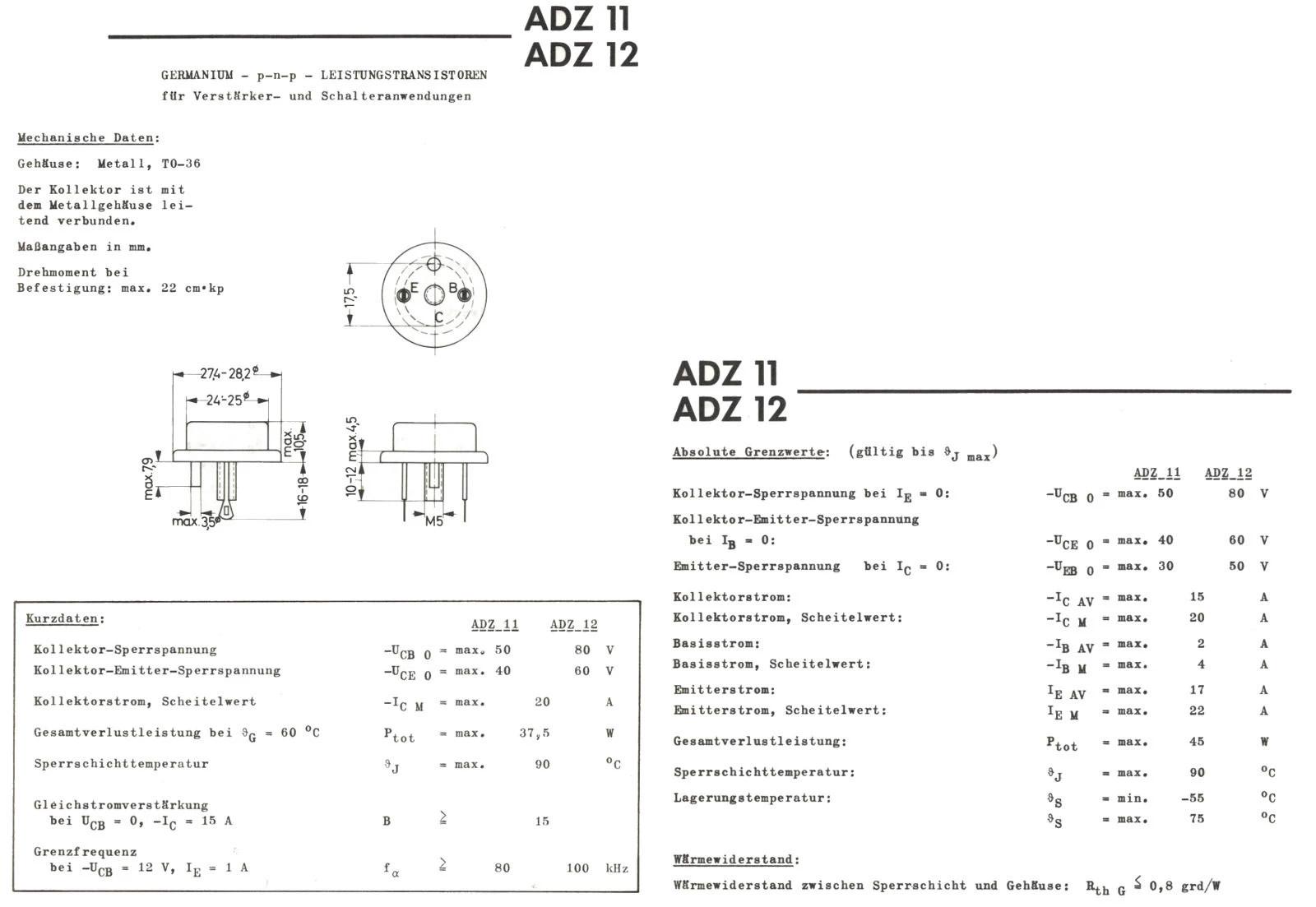

ADZ12 datasheet (pdf):
available
-
-
complementary type:
-
similar type list: ↓
2N1982... [more]
similar type search:
search similar
ADZ12
GE PNP transistor
UCE/UCB
-60V/-80V
IC
-15A
hFE
40-120
fT
100kHz
Ptot
45W
TJ
90°C
the ADZ12 is a germanium PNP power transistor preferred for use in general purpose amplifier and switching applications, collector is connected to case
-
Source
Va Valvo Handbuch 19... [more]
Advanced Information for ADZ12
OEM:
Valvo GmbH
Package:
TO-36
ADZ12 Info:
available
ADZ12 datasheet (pdf):
available
-
-
complementary type:
-
similar type list: ↓
2N1982... [more]
similar type search:
search similar
