A15

GE PNP transistor

U_CB

-16V

I_C

-15mA

h_FE

30-120

f_T

16MHz

P_tot

80mW

T_J

85°C

the A15 is a germanium PNP transistor, Ucb = 16V, Ic = 15mA preferred for use in AM amplifier and converter applications


-

Source

2SA15

Advanced Information for A15

OEM:

Hitachi Ltd.... [more]

Package:

A15 Info:

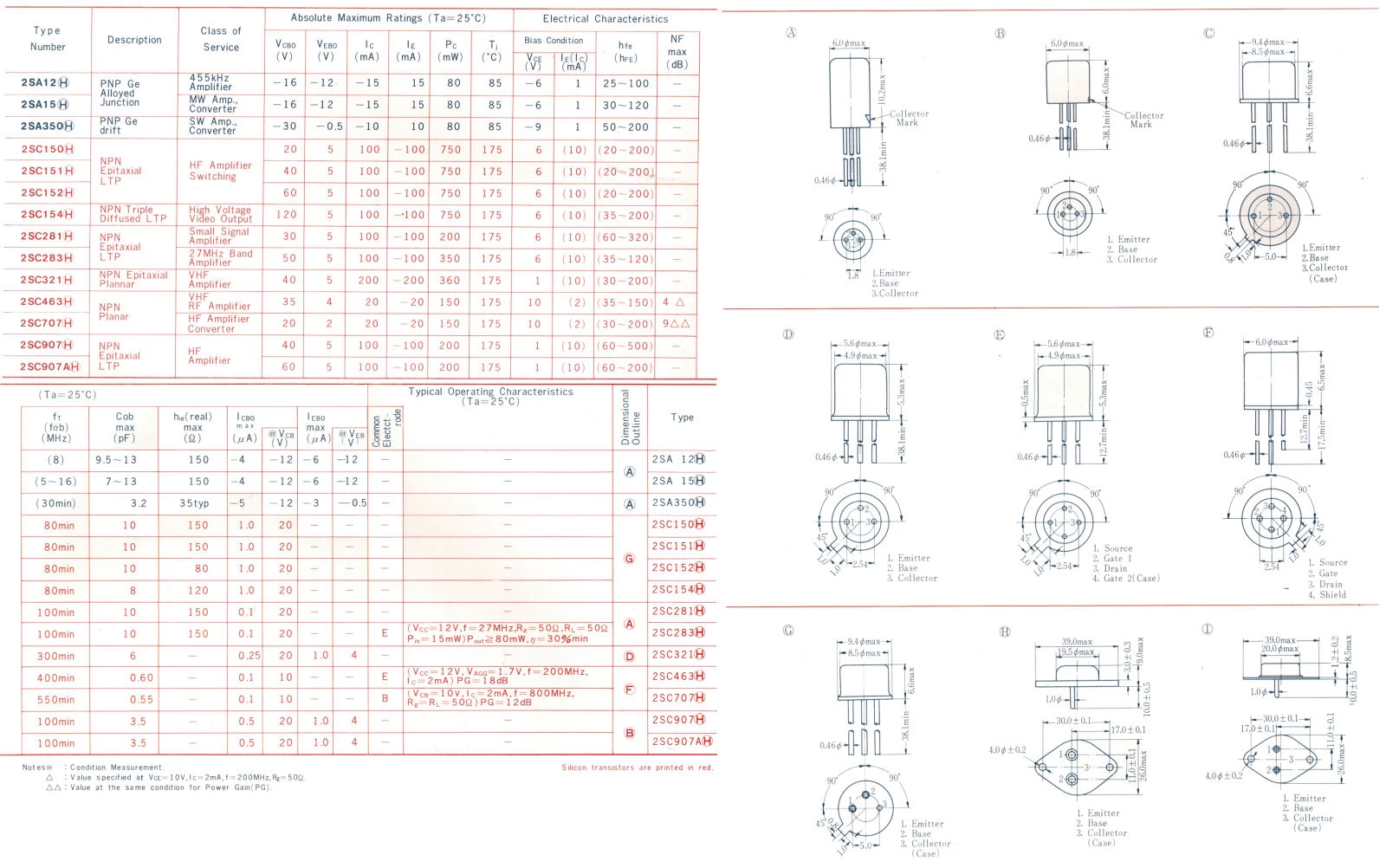

A15 datasheet (pdf):

-

-

-

complementary type:

-
