3TE450
SI NPN transistor
UCE/UCB
80V/80V
IC
0.5A
hFE
10-80
fT
>350MHz
Ptot
7.5W
TJ
200°C
the 3TE450 is a silicon NPN transistor preferred for use in VHF and UHF power applications up to 5W (400MHz)
-
Source
Jn Intermetall Trans... [more]
Advanced Information for 3TE450
OEM:
Intermetall... [more]
Package:
3TE450
3TE450 Info:
available

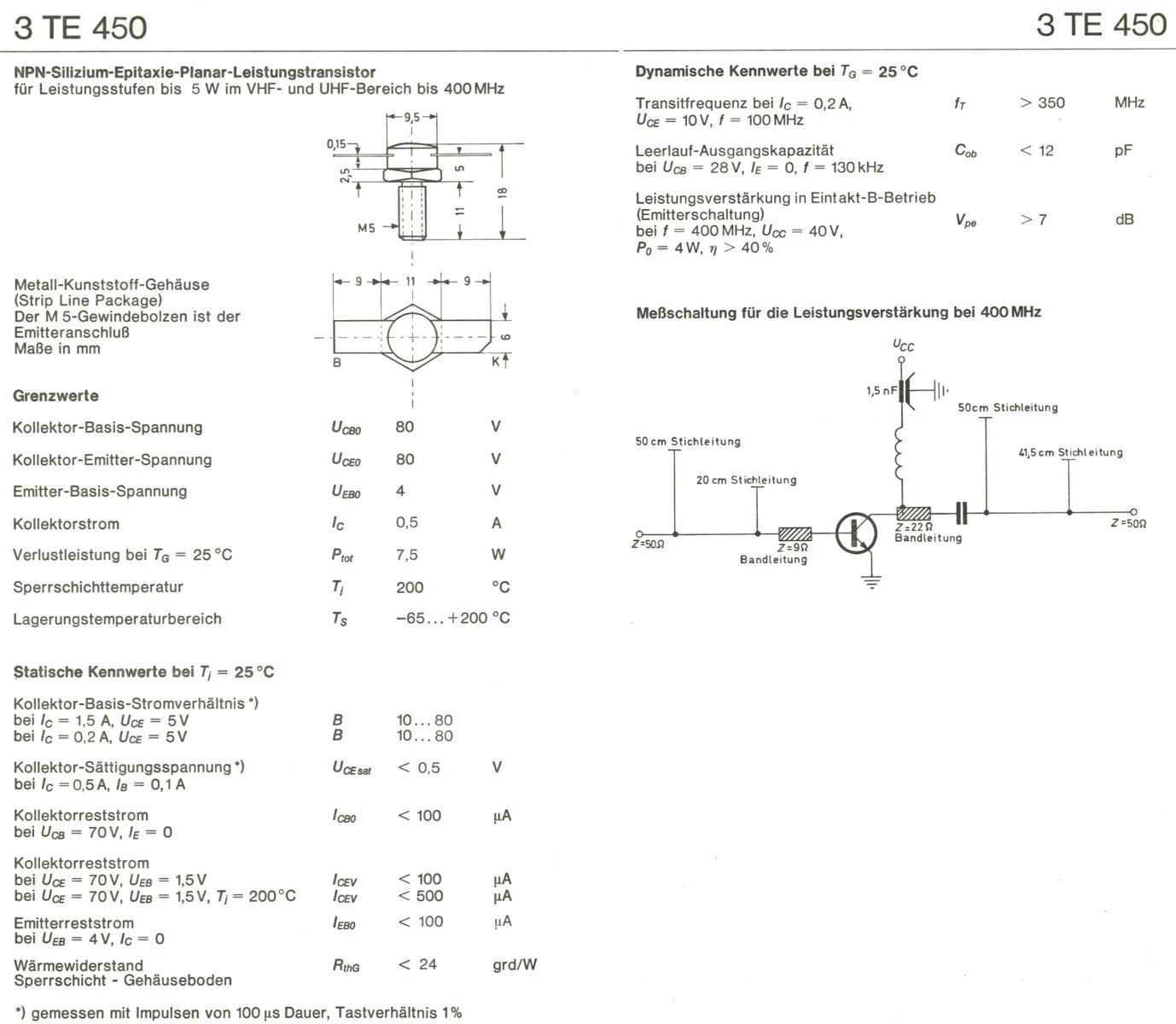

3TE450 datasheet (pdf):
-
-
-
complementary type:
-
similar type list:
-
similar type search:
search similar
3TE450
SI NPN transistor
UCE/UCB
80V/80V
IC
0.5A
hFE
10-80
fT
>350MHz
Ptot
7.5W
TJ
200°C
the 3TE450 is a silicon NPN transistor preferred for use in VHF and UHF power applications up to 5W (400MHz)
-
Source
Jn Intermetall Trans... [more]
Advanced Information for 3TE450
OEM:
Intermetall... [more]
Package:
3TE450
3TE450 Info:
available
3TE450 datasheet (pdf):
-
-
-
complementary type:
-
similar type list:
-
similar type search:
search similar
