BA117

SI diode

U_R

0.6-1.2V

I_F

0.1-200mA

U_F/I_F

1.1V/100mA

F

-

P_tot

0.26W

T_J

150°C

the BA117 is a silicon diode preferred for use in voltage stabilisation applications (forward direction)


-

Source

SH Halbleiter DB 196... [more]

Advanced Information for BA117

OEM:

Siemens AG

Package:

BA117 Info:

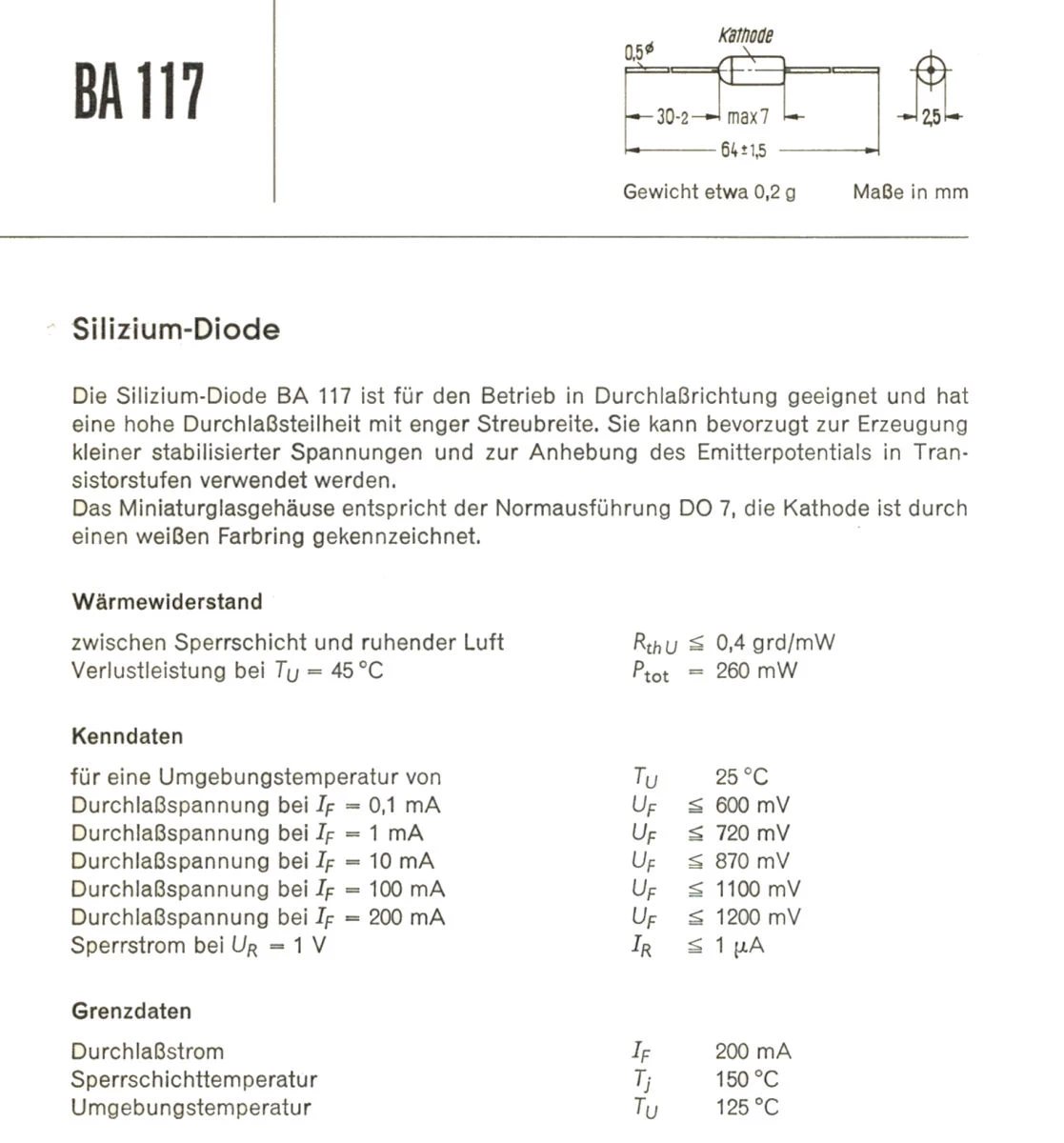

BA117 datasheet (pdf):

-

-

-

complementary type:

-

BA117

SI diode

U_R

0.6-1.2V

I_F

0.1-200mA

U_F/I_F

1.1V/100mA

F

-

P_tot

0.26W

T_J

150°C

the BA117 is a silicon diode preferred for use in voltage stabilisation applications (forward direction)


-

Source

SH Halbleiter DB 196... [more]

Advanced Information for BA117

OEM:

Siemens AG

Package:

BA117 Info:

BA117 datasheet (pdf):

-

-

-

complementary type:

-
