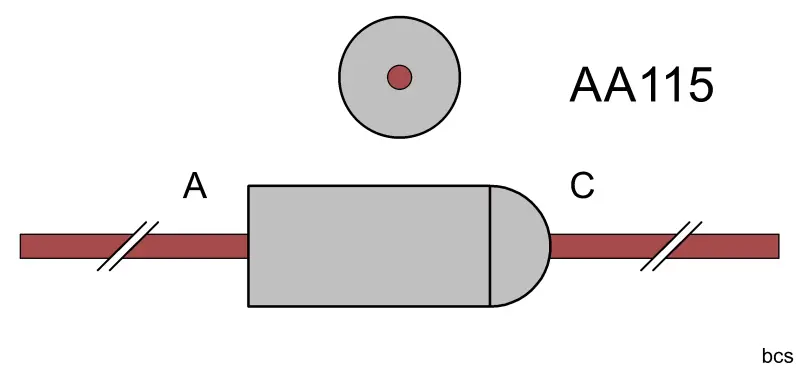

AA115
GE diode
UR
30V
IF
35mA
UF
-
trr
200nS
Ptot
-
TJ
60°C
the AA115 is a germanium miniature diode preferred for HF rectifier and switch applications
-
Source
SH Halbleiter DB 196... [more]
Advanced Information for AA115
OEM:
Siemens AG
Package:
AA115
AA115 Info:
available

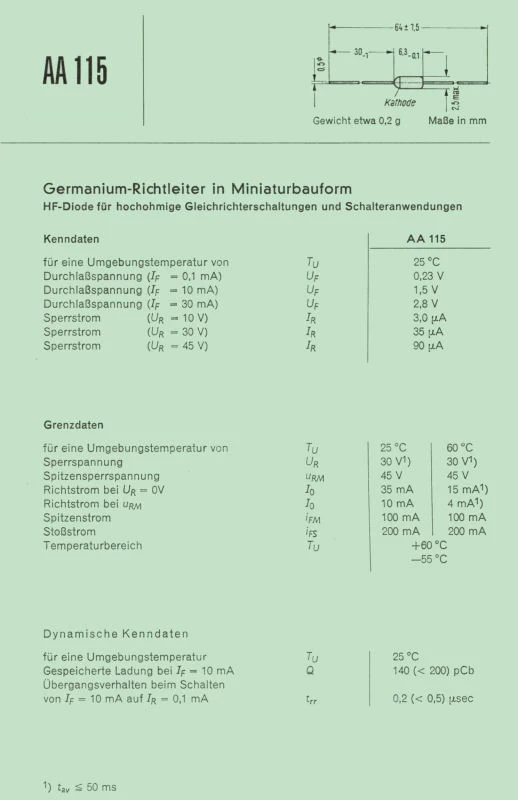

AA115 datasheet (pdf):
available
-
-
complementary type:
-
similar type list: ↓
AA113... [more]
similar type search:
search similar
AA115
GE diode
UR
30V
IF
35mA
UF
-
trr
200nS
Ptot
-
TJ
60°C
the AA115 is a germanium miniature diode preferred for HF rectifier and switch applications
-
Source
SH Halbleiter DB 196... [more]
Advanced Information for AA115
OEM:
Siemens AG
Package:
AA115
AA115 Info:
available
AA115 datasheet (pdf):
available
-
-
complementary type:
-
similar type list: ↓
AA113... [more]
similar type search:
search similar
